105°C THT Long-Life E-Cap ML-series with low profile case size
Product Code: 188511
Weight: 0.53 g
Manufacturer: RUBYCON

Detailed information

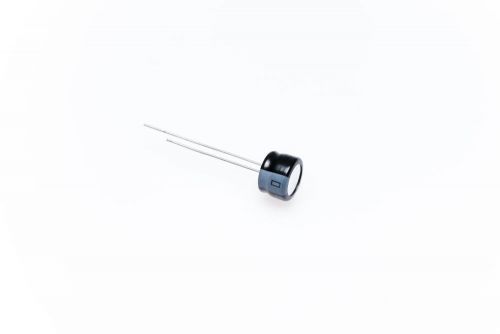

105°C THT Aluminum Electrolytic Capacitor 35ML47MEFC8x5 with long life time in small dimensions and low height

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 35V
Capacitance 47µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 0mA rms
Rated Ripple Current @120Hz 80mA rms
Maximum Category Temperature 105°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 3000h
Pin Type THT
Pitch 3,5mm
Diameter 8mm
Height 5mm
Series ML
