35ZT180M8x20

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
125°C THT Low-ESR E-Cap ZT-series
Product Code: 181668
Weight: 1.8 g
Manufacturer: RUBYCON

Detailed information

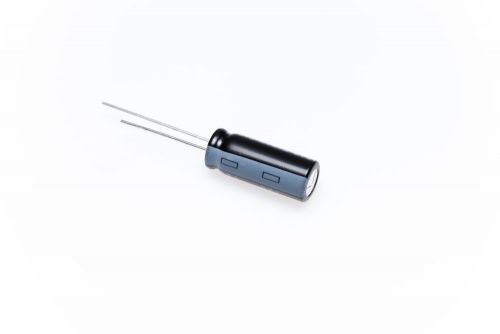

125°C THT Aluminum Electrolytic Capacitor 35ZT180M8x20 with low ESR and high ripple current capability

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 35V
Capacitance 180µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 1250mA rms
Rated Ripple Current @120Hz 0mA rms
Impedance/ESR 0,054Ω
Maximum Category Temperature 125°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 2000h
Pin Type THT
Pitch 3,5mm
Diameter 8mm
Height 20mm
Series ZT
Voltage Type DC
Rated Voltage 35Vdc
