125°C THT Low-ESR E-Cap ZT-series
Product Code: 227167
Weight: 0.48 g
Manufacturer: RUBYCON

Detailed information

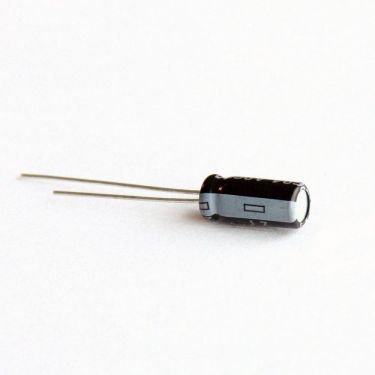

125°C THT Aluminum Electrolytic Capacitor 35ZT22M5x11 with low ESR and high ripple current capability

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 35V
Capacitance 22pF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 250mA rms
Rated Ripple Current @120Hz 0mA rms
Impedance/ESR 0,4Ω
Maximum Category Temperature 125°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 1000h
Pin Type THT
Pitch 2mm
Diameter 5mm
Height 11mm
Series ZT
Voltage Type DC
Rated Voltage 35Vdc
