125°C THT Low-ESR E-Cap ZT-series
Product Code: 216142
Weight: 3 g
Manufacturer: RUBYCON

Detailed information

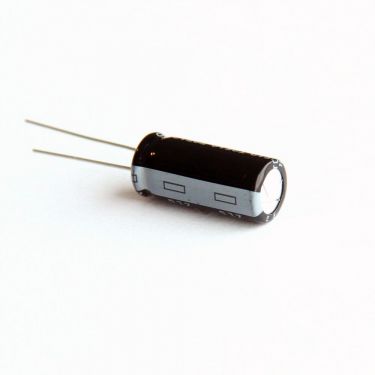

125°C THT Aluminum Electrolytic Capacitor 35ZT330M10x23 with low ESR and high ripple current capability

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 35V
Capacitance 330µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 1620mA rms
Rated Ripple Current @120Hz 0mA rms
Impedance/ESR 0,029Ω
Maximum Category Temperature 125°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 3000h
Pin Type THT
Pitch 5mm
Diameter 10mm
Height 23mm
Series ZT
Voltage Type DC
Rated Voltage 35Vdc
