DSK324SR 32,768kHz

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
RTC Modul 3225size 32,768kHz
Product Code: 258314
Weight: 25 g
Manufacturer: KDS Daishinku Corp

Detailed information

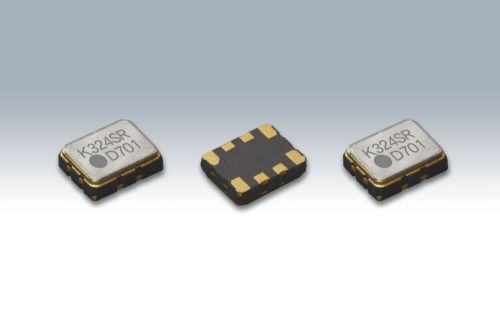

Real Time Clock Module DSK324SR 32,768kHz
Interface Operation: I2C-BUS
Output signal: CMOS
Frequency Stability : 5ppm
Operating Temperature Range: -40/85°C
Supply Voltage: 2,0-5,5V
Current Consumption: 4µA
6pads
AEC-Q100 compliant

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Case Size 3225
Input voltage 2,0-5,5V
Interface I2C-BUS
Current 4μA
Dimension 3.2×2.5×0.9mm
Contactform 6 pads
Outputtype CMOS
Capacitance 15pF
Packaging Metal cover
