DSO211AR 26MHz
Free Sample
Availability
Immediately deliverable
More information about samples availability can be found here: Availability
SPXO 2016size 26MHz
Product Code:
257530
Weight: 7.7 g
Manufacturer: KDS Daishinku Corp
Weight: 7.7 g
Manufacturer: KDS Daishinku Corp
Detailed information

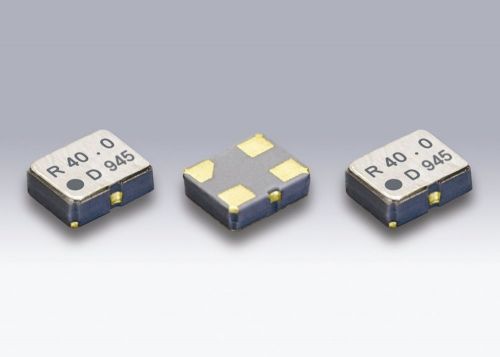

SPXO DSO211AR 26MHz
Output signal : CMOS
Frequency Stability : 50ppm
Operating Temperature Range : -40/85°C
Supply Voltage : 3,3V
Current Consumption : 1,8mA
4pads
AEC-Q100 compliant
Output signal : CMOS
Frequency Stability : 50ppm
Operating Temperature Range : -40/85°C
Supply Voltage : 3,3V
Current Consumption : 1,8mA
4pads
AEC-Q100 compliant
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: KDS Daishinku Corp
Technical Product Information
| Case Size | 2016 |
|---|---|
| Input voltage | 3,3V |
| Outputtype | CMOS |
| Contactform | 4 pads |
| Current | 1.8mA |
| Dimension | 2.0×1.6×0.72mm |
| Capacitance | 15pF |
| Packaging | Metal cover |
