EEHZS1H221P
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability

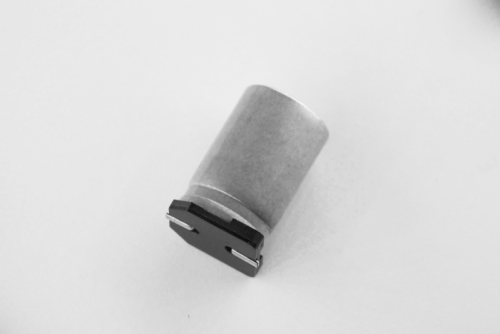

135°C SMD Hybrid E-Cap ZS-series
Product Code:
283366
Weight: 2.2 g
Manufacturer: PANASONIC
Weight: 2.2 g
Manufacturer: PANASONIC
Detailed information
135°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor EEHZS1H221P with 4.000h guaranteed life time, particular low ESR and particular high ripple current capability - AEC-Q200 certified
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: PANASONIC
Technical Product Information
| Rated Voltage | 50V |
|---|---|
| Capacitance | 220µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 2600mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,013Ω |
| Maximum Category Temperature | 135°C |
| Minimale Category Temperature | -55°C |
| Guaranteed Lifetime | 4000h |
| Pin Type | SMD |
| Diameter | 10mm |
| Height | 16,5mm |
| Series | ZS |
| Voltage Type | DC |
| Rated Voltage | 50Vdc |
