ETQP3M2R2KVN
Free Sample
Availability
Immediately deliverable
More information about samples availability can be found here: Availability

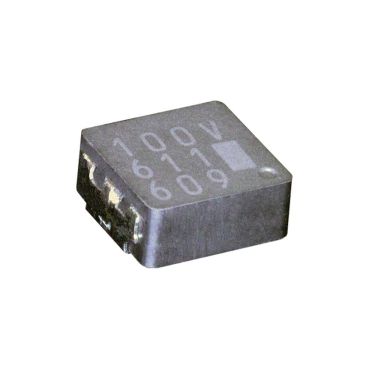

Power Choke Coil ETQP3M2R2KVN
Product Code:
268797
Weight: 0.6 g
Manufacturer: PANASONIC
Weight: 0.6 g
Manufacturer: PANASONIC
Detailed information
Monolithic Structure
Soft Saturation Characteristics
Magnetic Shielded
AEC-Q200 certified
Soft Saturation Characteristics
Magnetic Shielded
AEC-Q200 certified
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: PANASONIC
Technical Product Information
| Tolerance | +/-20% |
|---|---|
| Inductance | 2.2μH |
| Saturation Current | 12.8(ΔL -30%) A |
| DC Resistance | 14,5mΩ |
| Series | PCC-M0630M-LP |
| Pin Type | SMD |
| Minimale Category Temperature | -55°C |
| Maximum Category Temperature | 155°C |
| Height | 3mm |
