500BXC22MEFC16x25

Free Sample

Product Availability
Immediately deliverable
More information about product availability can be found here: Product Availability
105°C THT Long-Life E-Cap BXC-series for high ripple currents
Product Code: 212837
Weight: 7.5 g
Manufacturer: RUBYCON

Detailed information

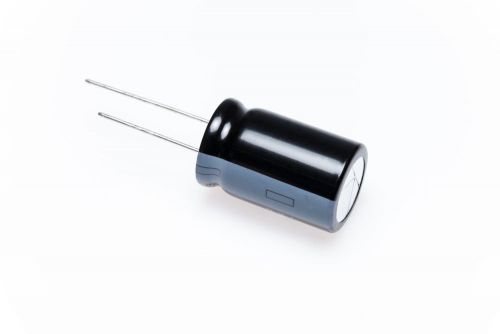

105°C THT DC-Link Aluminum Electrolytic Capacitor 500BXC22MEFC16x25 with long life time and high ripple current capability

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Series BXC
Pin Type THT
Rated Voltage 500V
Capacitance 22µF
Rated Ripple Current @120Hz 0mA rms
Rated Ripple Current @100kHz 560mA rms
Guaranteed Lifetime 12000h
Maximum Category Temperature 105°C
Minimale Category Temperature -25°C
Height 25mm
Pitch 7,5mm
Capacitance Tolerance +/-20 %
