80ZLH560MEFC12.5x40

Free Sample

Product Availability
Deliverable in short time
More information about product availability can be found here: Product Availability
Miniaturized 105°C THT Low-ESR Long-Life E-Cap ZLH-series
Product Code: 197444
Weight: 8 g
Manufacturer: RUBYCON

Detailed information

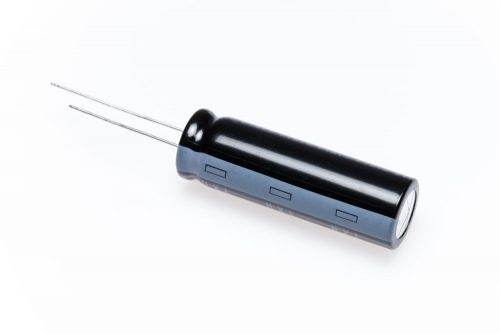

Miniaturized 105°C THT Aluminum Electrolytic Capacitor 80ZLH560MEFC12.5x40 with low ESR, high ripple current capability and long life time

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Series ZLH
Pin Type THT
Rated Voltage 80V
Capacitance 560µF
Rated Ripple Current @120Hz 0mA rms
Rated Ripple Current @100kHz 2340mA rms
Impedance/ESR 0,036Ω
Guaranteed Lifetime 10000h
Maximum Category Temperature 105°C
Minimale Category Temperature -40°C
Height 40mm
Pitch 5mm
Capacitance Tolerance +/-20 %
