6.3TZV22M4x6.1
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C SMD Low-ESR E-Cap TZV-series
Product Code:
165574
Weight: 0.14 g
Manufacturer: RUBYCON
Weight: 0.14 g
Manufacturer: RUBYCON
Detailed information

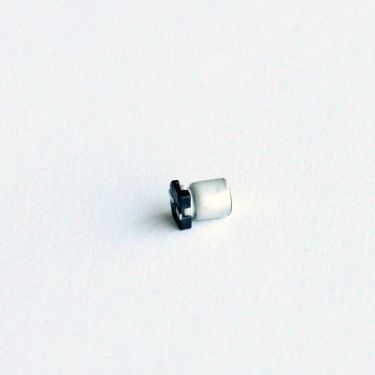

105°C SMD Aluminum Electrolytic Capacitor 6.3TZV22M4x6.1 with low ESR
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
| Rated Voltage | 6,3V |
|---|---|
| Capacitance | 22µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 90mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 1,35Ω |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -55°C |
| Guaranteed Lifetime | 2000h |
| Pin Type | SMD |
| Diameter | 4mm |
| Height | 6,1mm |
| Series | TZV |
| Voltage Type | DC |
| Rated Voltage | 6,3Vdc |
