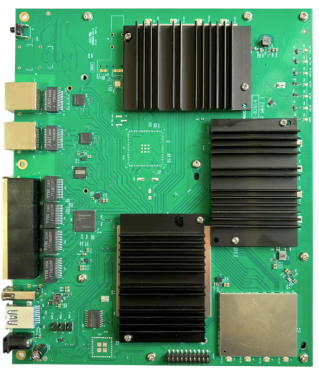

AP.MR02.1

Board Supplier: Compex
Chip Supplier: Qualcomm
Chip Part Number: IPQ-5424-0
CPU: Quad-Core ARM Cortex-A55 @ 1.8GHz
Flash: 256MB NAND flash, 32MB NOR flash
RAM: 4GB DDR4, 8GB DDR4 (Max Option)
OS: OpenWRT
Ethernet: 4 x 2.5Gbps, 2 x 10Gbps
USB: USB3.0, USB2.0
PCIe: -
Serial Interfaces: UART 12 Pin Connector
GPIOs: -
JTAG: JTAG 20 Pin Connector
Miscellaneous: WPS Button
Standards: WiFi 7
MIMO: 4x4 MU @ 2.4GHz, 5GHz,6GHz
Frequency: 2.4GHz, 5GHz, 6GHz
DBS: yes
Bandwidth: EHT20/EHT40/EHT80/EHT160/EHT320
Antenna Data Rate 2.4 GHz: 1376Mbps
Antenna Data Rate 5 GHz: 8647Mbps
Antenna Data Rate 6 GHz: 11530Mbps
Antenna Options: 12x U.FL
Clients: 512
Output Power: 23 dBm @ 2.4 GHz, 21 dBm @ 5 GHz, 19 dBm @ 6 GHz
Power Supply: 1x DC Jack Connector: 12V
Dimension (mm): 215 x 180 x 25.5
Weight (g): 660
Temperature Range: -15°C to +70°C
Reference Design: Qualcomm AP.MR02.1
