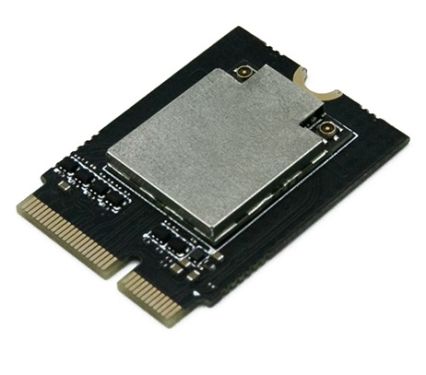

MQC2064-0-46-0U

Module Supplier: Meticomm
Chip Supplier: Qualcomm
Chip Part Number: QCA-2064
Interface Wi-Fi: PCIe 3.0, M.2 Key E 2230
Interface Bluetooth: UART/PCM
Linux & Android / Mainline Driver: yes / no
Windows: NA
Bluetooth Standard: V 5.3, BLE
WiFi Standard: WiFi 6
MIMO: MU 2x2
Frequency: 2.4 GHz & 5 GHz, DBS
Bandwidth: HE20/HE40/HE80 /HE160
Antenna Data Rate: 3.6 Gbps
Antenna Configuration: [2G,5G]+[2G,5G,BT]
Antenna Type: 2 x MHF-4
Monitor Mode: yes
Full AP / Soft AP: no / yes
Power Supply: 3.3V, 1.8V (IO port)
Dimension (mm): 12 x 16
Package: M.2 Key E 2230
Temperature Range: -30°C to +85°C
