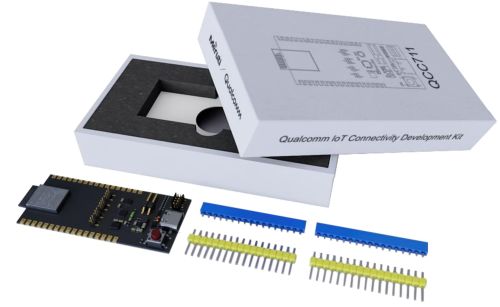

MQM100-1B-EVB-V1.2

The MQM100-1B-EVB is purposely designed for application software developers. The DevKit exposes all QCC-711 GPIO pins via the MQM100-1 module to dual headers to allow flexible expansion. Developers can add sensors and other accessories through these dual headers. The dual header has a width of 25.4mm /1.0inch to allow easy plug-in to the widely used breadboard further to facilitate prototyping development. The DevKit supports SEGGR J-Link and OpenOCD. It is compatible with the QCC711 license free and open-source software SDK which is available on GitHub and prepared for IAR workbench IDE and Visual Studio via a VScode extension plugin.The software SDK contains the complete framework for all 3 QCC-711 sub-systems (application, Bluetooth Low Energy, Root of Trust) and includes ARM Cortex standard libraries (CMSIS) as well as example applications.
