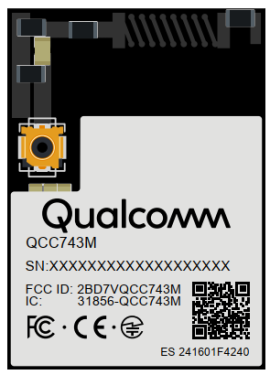

QCC-743M-1-LGM36-MT-01-0-AA

Module Supplier: Qualcomm
Chip Supplier: Qualcomm
Chip Part Number: QCC-743-1
CPU: RISC-V @ 325MHz with FPU + DSP
Flash: 4 MB NOR
RAM: 484 KB
ROM: 128 KB
Hosted Interface: SDIO, UART, SPI
Hosted OS: Any
Hostless OS: FreeRTOS
SDIO: 1 x SDIO
USB : NA
SPI / QSPI: 1 x SPI / 1 x QSPI
UART: 2 x UART
I2C: 2 x I2C
ADC: 12 x channels 12/16 bit
DAC: 2 x channels 12 bit
PWM: 4 x PWM
GPIOs: 19 multiplexed GPIOs
Securtiy: Crypto Accelerators
Secure Boot/Storage/Debug: yes/yes/yes
Video: no
Audio Codec with Audio DAC&ADC: no
Miscellaneous: I2S, SD/MCC/SF, CAN, JTAG
Bluetooth Standard + Others: BT 5.4, BLE + 802.15.4
WiFi Standard: WiFi 6
MIMO: MU 1x1
Frequency: 2.4 GHz
Bandwidth / MCS: HE20/HE40, MCS9
Antenna Data Rate: 229.4 Mbps
Antenna Type: PCB
PA on Chip / Module: yes / no
Soft AP: yes
Monitor Mode: yes
Power Supply: Main:3.3V IO:1.8V or 3.3V
Dimension (mm): 12.28 x 17.28
Temperature Range: -40°C to 85°C
