100TXW82MEFC8x25
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
"105° THT Long-Life E-Cap TXW-series for high ripple currents ""Pencil Type"""
Product Code:
228208
Weight: 2.4 g
Manufacturer: RUBYCON
Weight: 2.4 g
Manufacturer: RUBYCON
Detailed information

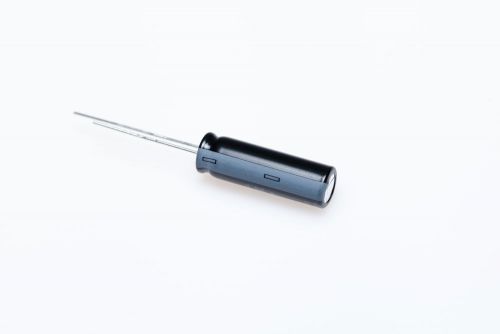

"105°C THT Aluminum Electrolytic Capacitor 100TXW82MEFC8x25 with high ripple current capability and long life time ""Pencil Type"""
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
| Rated Voltage | 100V |
|---|---|
| Capacitance | 82µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 1330mA rms |
| Rated Ripple Current @120Hz | 665mA rms |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 10000h |
| Pin Type | THT |
| Pitch | 3,5mm |
| Diameter | 8mm |
| Height | 25mm |
| Series | TXW |
| Voltage Type | DC |
| Rated Voltage | 100Vdc |
