HomePlug Green Phy for IoT

This image shows a woman controlling her smart home via her smartphone.

Modules and Chips Configured for Home Control

In addition to e-mobility, there are various other applications for powerline communication in the field of IoT, such as smart metering, i.e. the remote reading of electricity meters, or home control applications. What matters here is a reliable connection. At the same time, the data should be transmitted securely and encrypted.

This means that overhead data and with it the whole amount of transmit data often is increased and the data rates of Narrow Band PLC are not enough for time critical applications with many nodes involved. On the other side Broad Band PLC with it´s very high data rates are oversized for these kind of applications and the pretty high power consumption speak against the use of Broad Band PLC as well. HomePlug Green Phy Standard offers a solution to this dilemma.

Samples Contacts

HomePlug Green Phy Dispenses the Subcarrier Modulation

HomePlug Green Phy dispenses entirely the subcarrier modulation and communication takes place in QPSK-Mode (Quadrature Phase-Shift Keying) of HomePlug AV only. By dispensing subcarrier modulation, it is not required anymore to characterize the channel. Both result in substantially reduced performance requirements for the integrated processor and with that in much reduced power dissipation.

At the same time the required memory can be reduced and as a result can be integrated into the MAC/PHY chip. Sensitivity can be lowered as well when running the chip in QPSK Modulation mode only compared with 1.024 QAM and so the analogue front end can be integrated as well. Both lead to a simplified system design and finally to a single chip solution. Because of the fact that frequency range, channel spacing as well as forward error correction method remain the same for HomePlug Green Phy equipment compared to HomePlug AV/ AV2/ IEEE 1901 all devices are fully interoperable and are able to communicate with each other.

Manufacturers & Contacts

The 8DEVICES company logo.


8DEVICES is specialized in SOM (System on a Module) and combo radio modules for Wi-Fi and Bluetooth that are all based on QUALCOMM chipsets. The company's extensive experience in hardware and software development allows it to offer high-quality and reliable modules. As QUALCOMM's Authorised Design Centre (ADC) partner, 8DEVICES also supports custom designs and offers customized software and hardware solutions to meet your specific requirements.

Infos Samples
The DEVOLO company logo.


DEVOLO enables smart connectivity and inspires businesses as well as consumers to embrace the opportunities of our digital world. The main business area is solutions based on Powerline Communications (PLC), which use existing wiring for data transmission.

Infos Samples
The INSYS company logo.

INSYS icom

INSYS icom develops routers, gateways and managed services "Made in Germany" for secure industrial data communication, networking and smart charging of electric vehicles with passion. NSYS thus supports enthusiastic customers in realizing their digitization and IoT projects profitably.

Infos Samples
The QUALCOMM company logo.


QUALCOMM is an American global fabless semiconductor company that designs and markets wireless telecommunications products and services. The company headquarter is located in San Diego, California, United States. Out of the broad portfolio of QUALCOMM´s products, CODICO distributes Bluetooth, GNSS, PLC, Wi-Fi and Ethernet products.

Infos Samples
The SEVENSTAX company logo.


SEVENSTAX is a software specialist with a wide range of protocol stack implementations, specifically designed for the use in embedded systems. All embedded software products are developed in-house based on the SEVENSTAX quality criteria.

Infos Samples

11 Items

per page
Set Descending Direction
  1. Devolo_TMS61088CT_1-1-1_PTH_4_4-small3
    HomePlug Green Phy for Charging Stations Coupler 81246 TMS61290CT-C
    Free Sample
    At 6 pieces: €4.20 each
  2. RED-BEET-H 1.1 (Home Control) Module
    HomePlug Green Phy for IoT RED-BEET-H 1.1 (Home Control) Module
  3. WB-CARRIER-BOARD-H (Home Control)
    HomePlug Green Phy for IoT WB-CARRIER-BOARD-H (Home Control)
  4. image_591
    HomePlug Green Phy for IoT YELLOW beet H (Home Control) Module
  5. image_398
    HomePlug Green Phy for IoT WHITE-BEET-H (Home Control) Module

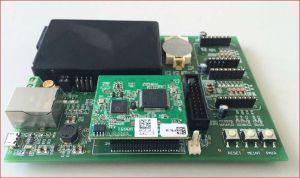

  6. dlan_green_phy_eval_board_eu_ii_bild_1_10
    HomePlug Green Phy for IoT dLAN Green PHY eval board EU II
  7. ut11359-1-5-4_pth_1_1-small_13
    HomePlug Green Phy for IoT Coupler 82977 UT11359
    Free Sample
  8. tms61518cs-1-1-1_smd_3_2-small_13
    HomePlug Green Phy for Charging Stations Coupler 81752 TMS61518CS
    Free Sample
    At 8 pieces: €3.50 each

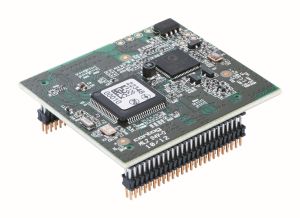

  9. dlangreenphy-module-flach-print-small_10
    HomePlug Green Phy for IoT dLAN Green Phy Module
  10. tms61088ct_1-1-1_pth_4_1-small_13
    HomePlug Green Phy for Charging Stations Coupler 81025 TMS61088CT
    Free Sample
    At 4 pieces: €6.50 each
