100YXJ10M6.3x11
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Miniaturized 105°C THT Long-Life Low-ESR E-Cap YXJ-series
Product Code:
235948
Weight: 0.68 g
Manufacturer: RUBYCON
Weight: 0.68 g
Manufacturer: RUBYCON
Detailed information

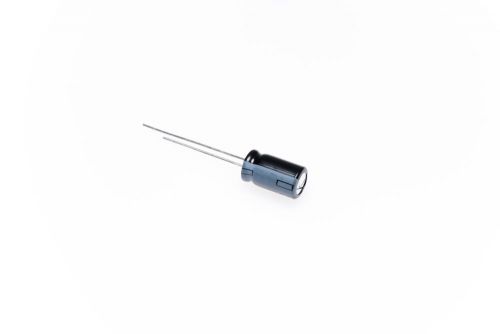

Miniaturized 105°C THT Aluminum Electrolytic Capacitor 100YXJ10M6.3x11 with extra low ESR and long life time
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
| Rated Voltage | 100V |
|---|---|
| Capacitance | 10µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 267mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,57Ω |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 7000h |
| Pin Type | THT |
| Pitch | 2,5mm |
| Diameter | 6,3mm |
| Height | 11mm |
| Series | YXJ |
| Voltage Type | DC |
| Rated Voltage | 100Vdc |
