100ZLH100MEFC10x20

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Miniaturized 105°C THT Low-ESR Long-Life E-Cap ZLH-series
Product Code: 217476
Weight: 2.7 g
Manufacturer: RUBYCON

Detailed information

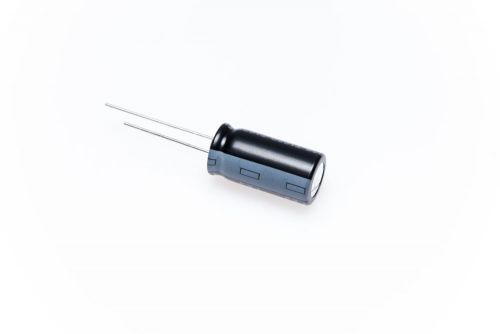

Miniaturized 105°C THT Aluminum Electrolytic Capacitor 100ZLH100MEFC10x20 with low ESR, high ripple current capability and long life time

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 100V
Capacitance 100µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 1040mA rms
Rated Ripple Current @120Hz 0mA rms
Impedance/ESR 0,12Ω
Maximum Category Temperature 105°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 10000h
Pin Type THT
Pitch 5mm
Diameter 10mm
Height 20mm
Series ZLH
Voltage Type DC
Rated Voltage 100Vdc
