10FVC150M+PN
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Ultra miniaturized 125°C SMD Hybrid E-Cap FVC-series
Product Code:
323612
Weight: 0.4 g
Manufacturer: SUNCON
Weight: 0.4 g
Manufacturer: SUNCON
Detailed information

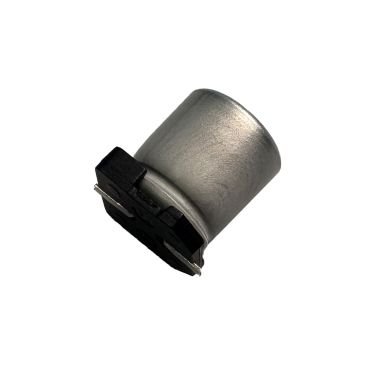

Ultra miniaturized 125°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor 10FVC150M+PN with 4.000h guaranteed life time, low ESR and high ripple current capability.
Rated ripple current at 105°C: 2,800mA rms
Rated ripple current at 105°C: 2,800mA rms
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: SUNCON
Technical Product Information
| Capacitance | 150µF |
|---|---|
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 1000mA rms |
| Impedance/ESR | 0,060Ω |
| Maximum Category Temperature | 125°C |
| Minimale Category Temperature | -55°C |
| Guaranteed Lifetime | 4000h |
| Pin Type | SMD |
| Diameter | 5mm |
| Height | 6mm |
| Series | FVC |
| Voltage Type | DC |
| Rated Voltage | 10Vdc |
