10TRV1800M12.5x13.5
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C SMD Long-Life E-Cap TRV-series for high ripple currents
Product Code:
258478
Weight: 2.5 g
Manufacturer: RUBYCON
Weight: 2.5 g
Manufacturer: RUBYCON
Detailed information

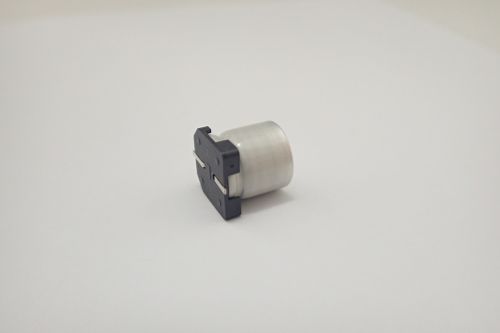

105°C SMD Aluminum Electrolytic Capacitor 10TRV1800M12.5x13.5 with high ripple current capability and extra long life time
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
| Rated Voltage | 10V |
|---|---|
| Capacitance | 1800µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 950mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,092Ω |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 10000h |
| Pin Type | SMD |
| Diameter | 12,5mm |
| Height | 13,5mm |
| Series | TRV |
| Voltage Type | DC |
| Rated Voltage | 10Vdc |
