10YXJ1000M10x12.5
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Miniaturized 105°C THT Long-Life Low-ESR E-Cap YXJ-series
Product Code:
229523
Weight: 1.7 g
Manufacturer: RUBYCON
Weight: 1.7 g
Manufacturer: RUBYCON
Detailed information

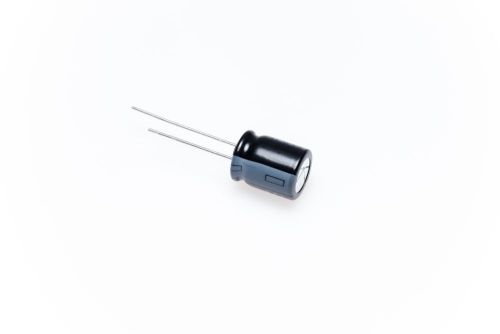

Miniaturized 105°C THT Aluminum Electrolytic Capacitor 10YXJ1000M10x12.5 with extra low ESR and long life time
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
| Rated Voltage | 10V |
|---|---|
| Capacitance | 1000µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 865mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,08Ω |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 8000h |
| Pin Type | THT |
| Pitch | 5mm |
| Diameter | 10mm |
| Height | 12,5mm |
| Series | YXJ |
| Voltage Type | DC |
| Rated Voltage | 10Vdc |
