160BXC220MEFC18x25
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C THT Long-Life E-Cap BXC-series for high ripple currents
Product Code:
217770
Weight: 10 g
Manufacturer: RUBYCON
Weight: 10 g
Manufacturer: RUBYCON
Detailed information

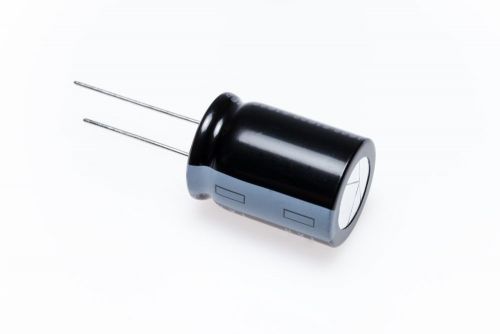

105°C THT DC-Link Aluminum Electrolytic Capacitor 160BXC220MEFC18x25 with long life time and high ripple current capability
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
Rated Voltage | 160V |
---|---|
Capacitance | 220µF |
Capacitance Tolerance | +/-20 % |
Rated Ripple Current @100kHz | 2370mA rms |
Rated Ripple Current @120Hz | 0mA rms |
Maximum Category Temperature | 105°C |
Minimale Category Temperature | -25°C |
Guaranteed Lifetime | 12000h |
Pin Type | THT |
Pitch | 7,5mm |
Diameter | 18mm |
Height | 25mm |
Series | BXC |
Voltage Type | DC |
Rated Voltage | 160Vdc |
