125°C THT Long-Life E-Cap LEX-series with compact dimensions
Product Code: 259052
Weight: 0.9 g
Manufacturer: RUBYCON

Detailed information

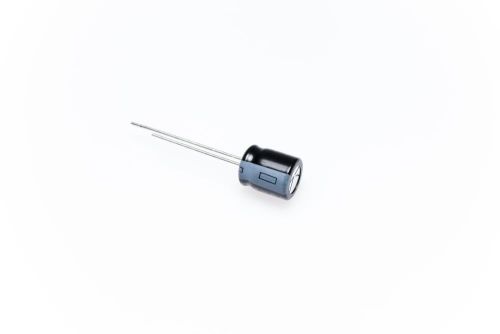

125°C THT DC-Link Aluminum Electrolytic Capacitor 160LEX10MEFC8x9 with long life time and small dimensions

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 160V
Capacitance 10µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 133mA rms
Rated Ripple Current @120Hz 70mA rms
Maximum Category Temperature 125°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 4000h
Pin Type THT
Pitch 3,5mm
Diameter 8mm
Height 9mm
Series LEX
Voltage Type DC
Rated Voltage 160Vdc
