16TGV1500M16x16.5
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
125°C SMD Long-Life E-Cap TGV-series for high ripple currents
Product Code:
258398
Weight: 5 g
Manufacturer: RUBYCON
Weight: 5 g
Manufacturer: RUBYCON
Detailed information

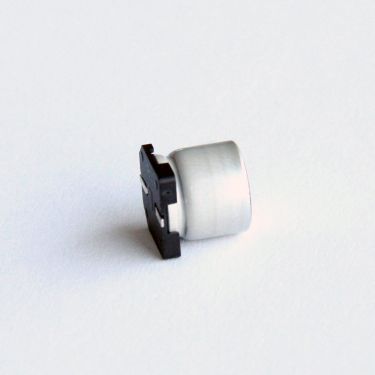

125°C SMD Aluminum Electrolytic Capacitor 16TGV1500M16x16.5 with long life time and high ripple current capability
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
| Rated Voltage | 16V |
|---|---|
| Capacitance | 1500µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 1200mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,066Ω |
| Maximum Category Temperature | 125°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 5000h |
| Pin Type | SMD |
| Diameter | 16mm |
| Height | 16,5mm |
| Series | TGV |
| Voltage Type | DC |
| Rated Voltage | 16Vdc |
