16TGV1800M18x16.5

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
125°C SMD Long-Life E-Cap TGV-series for high ripple currents
Product Code: 258399
Weight: 6.5 g
Manufacturer: RUBYCON

Detailed information

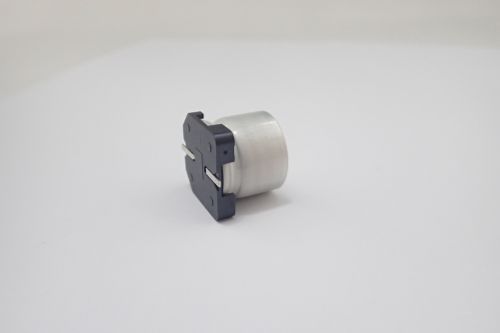

125°C SMD Aluminum Electrolytic Capacitor 16TGV1800M18x16.5 with long life time and high ripple current capability

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 16V
Capacitance 1800µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 1300mA rms
Rated Ripple Current @120Hz 0mA rms
Impedance/ESR 0,064Ω
Maximum Category Temperature 125°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 5000h
Pin Type SMD
Diameter 18mm
Height 16,5mm
Series TGV
