16TLV1500M12.5x13.5

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C SMD Long-Life E-Cap TLV-series for high ripple currents
Product Code: 256422
Weight: 2.5 g
Manufacturer: RUBYCON

Detailed information

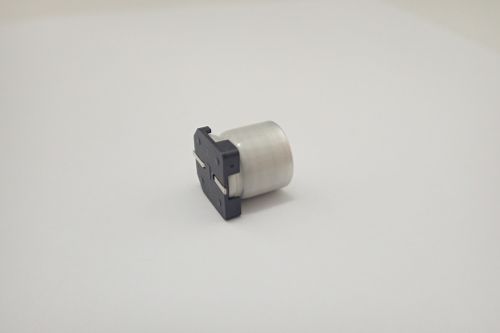

105°C SMD Aluminum Electrolytic Capacitor 16TLV1500M12.5x13.5 with high ripple current capability and long life time

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 16V
Capacitance 1500µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 1100mA rms
Rated Ripple Current @120Hz 0mA rms
Impedance/ESR 0,065Ω
Maximum Category Temperature 105°C
Minimale Category Temperature -55°C
Guaranteed Lifetime 5000h
Pin Type SMD
Diameter 12,5mm
Height 13,5mm
Series TLV
