16TRV5600M18x21.5

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C SMD Long-Life E-Cap TRV-series for high ripple currents
Product Code: 258491
Weight: 8.5 g
Manufacturer: RUBYCON

Detailed information

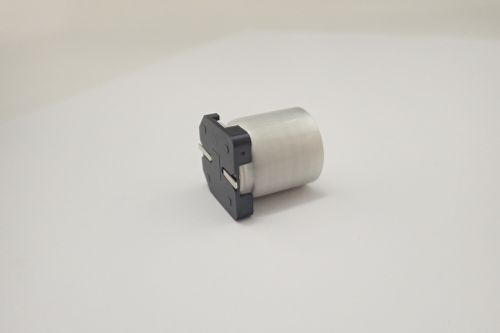

105°C SMD Aluminum Electrolytic Capacitor 16TRV5600M18x21.5 with high ripple current capability and extra long life time

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 16V
Capacitance 5600µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 2150mA rms
Rated Ripple Current @120Hz 0mA rms
Impedance/ESR 0,039Ω
Maximum Category Temperature 105°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 10000h
Pin Type SMD
Diameter 18mm
Height 21,5mm
Series TRV
Voltage Type DC
Rated Voltage 16Vdc
