220BXW470MEFR18x45

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C THT Long-Life E-Cap BXW-series for high ripple currents
Product Code: 258902
Weight: 18 g
Manufacturer: RUBYCON

Detailed information

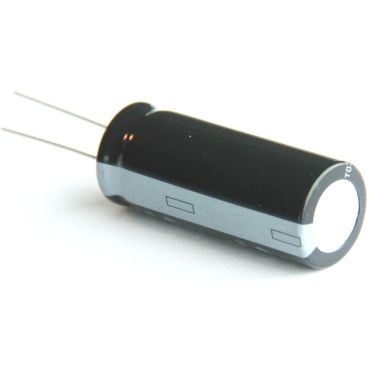

Miniaturized 105°C THT DC-Link Aluminum Electrolytic Capacitor 220BXW470MEFR18x45 with long life time and high ripple current capability

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 220V
Capacitance 470µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 3380mA rms
Rated Ripple Current @120Hz 1690mA rms
Maximum Category Temperature 105°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 12000h
Pin Type THT
Pitch 7,5mm
Diameter 18mm
Height 45mm
Series BXW
Voltage Type DC
Rated Voltage 220Vdc
