250BXC56MEFC18x16

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C THT Long-Life E-Cap BXC-series for high ripple currents
Product Code: 227517
Weight: 6.2 g
Manufacturer: RUBYCON

Detailed information

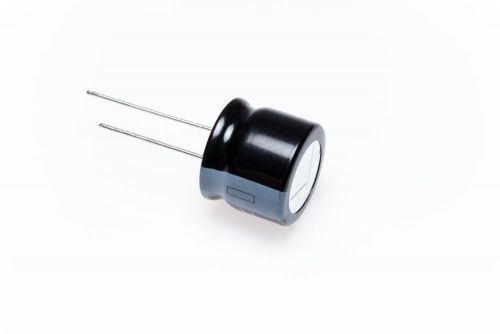

105°C THT DC-Link Aluminum Electrolytic Capacitor 250BXC56MEFC18x16 with long life time and high ripple current capability

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 250V
Capacitance 56µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 960mA rms
Rated Ripple Current @120Hz 0mA rms
Maximum Category Temperature 105°C
Minimale Category Temperature -25°C
Guaranteed Lifetime 12000h
Pin Type THT
Pitch 7,5mm
Diameter 18mm
Height 16mm
Series BXC
Voltage Type DC
Rated Voltage 250Vdc
