250BXW270MEFR16x40

Free Sample

Availability
Immediately deliverable
More information about samples availability can be found here: Availability
105°C THT Long-Life E-Cap BXW-series for high ripple currents
Product Code: 258841
Weight: 12 g
Manufacturer: RUBYCON

Detailed information

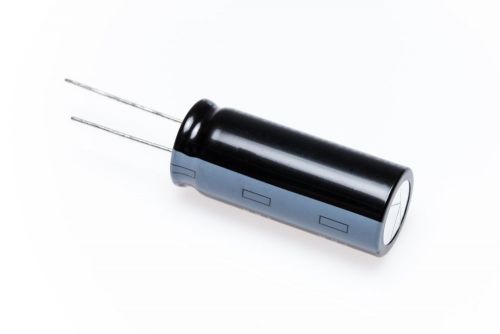

Miniaturized 105°C THT DC-Link Aluminum Electrolytic Capacitor 250BXW270MEFR16x40 with long life time and high ripple current capability

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 250V
Capacitance 270µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 2540mA rms
Rated Ripple Current @120Hz 1270mA rms
Maximum Category Temperature 105°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 12000h
Pin Type THT
Pitch 7,5mm
Diameter 16mm
Height 40mm
Series BXW
Voltage Type DC
Rated Voltage 250Vdc
