250MXG470MEFCSN22x40

Free Sample

Product Availability
Deliverable in short time
More information about product availability can be found here: Product Availability
105°C Snap-in E-Cap MXG-series
Product Code: 250680
Weight: 24 g
Manufacturer: RUBYCON

Detailed information

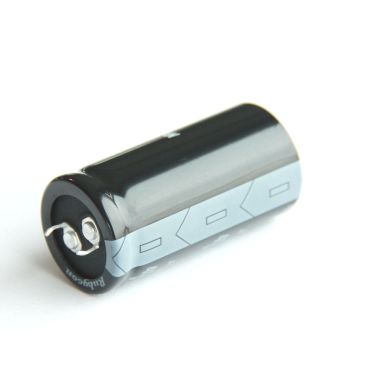

105°C Snap-in Aluminum Electrolytic Capacitor 250MXG470MEFCSN22x40 with 3.000h guaranteed life time

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 250V
Capacitance 470µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 0mA rms
Rated Ripple Current @120Hz 1940mA rms
Maximum Category Temperature 105°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 3000h
Pin Type SNAP-IN
Pitch 10mm
Diameter 22mm
Height 40mm
Series MXG
