25HVPC560M+P

Free Sample

Availability
Immediately deliverable
More information about samples availability can be found here: Availability

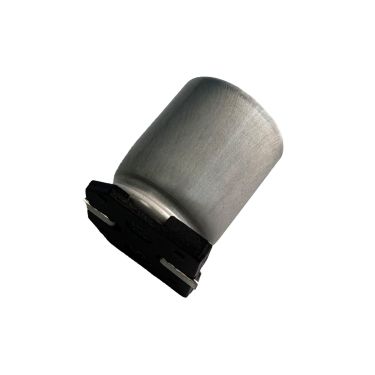

Miniaturized 125°C SMD Hybrid E-Cap HVPC-series
Product Code: 287954
Weight: 1.9 g
Manufacturer: SUNCON

Detailed information

Miniaturized 125°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor 25HVPC560M+P with 4.000h guaranteed life time, low ESR and high ripple current capability

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 25V
Capacitance 560µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 3000mA rms
Rated Ripple Current @120Hz 0mA rms
Impedance/ESR 0,02Ω
Maximum Category Temperature 125°C
Minimale Category Temperature -55°C
Guaranteed Lifetime 4000h
Pin Type SMD
Diameter 10mm
Height 12,5mm
Series HVPC
Voltage Type DC
Rated Voltage 25Vdc
