25PHV220M8x10.5
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
135°C SMD Hybrid E-Cap PHV-series
Product Code:
272475
Weight: 0.87 g
Manufacturer: RUBYCON
Weight: 0.87 g
Manufacturer: RUBYCON
Detailed information

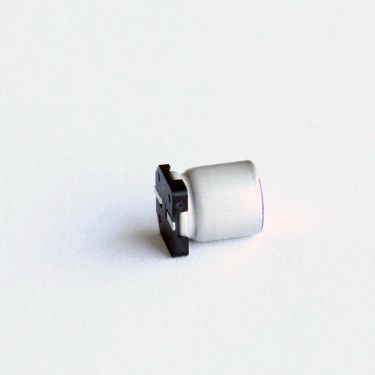

135°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor 25PHV220M8x10.5 with 4.000h guaranteed life time, low ESR and high ripple current capability
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
| Capacitance | 220µF |
|---|---|
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 1600mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,022Ω |
| Maximum Category Temperature | 135°C |
| Minimale Category Temperature | -55°C |
| Guaranteed Lifetime | 4000h |
| Pin Type | SMD |
| Diameter | 8mm |
| Height | 10,5mm |
| Series | PHV |
| Voltage Type | DC |
| Rated Voltage | 25Vdc |
