25PZF220M8x9

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
125°C THT Hybrid E-Cap PZF-series
Product Code: 259168
Weight: 0.9 g
Manufacturer: RUBYCON

Detailed information

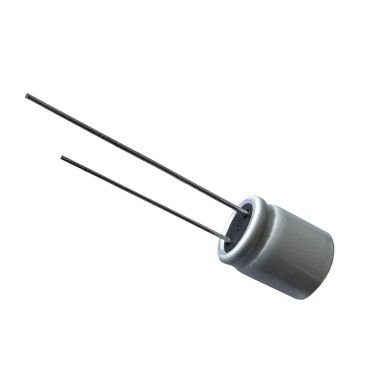

125°C THT Aluminum-Polymer-Hybrid Electrolytic Capacitor 25PZF220M8x9 with 4.000h guaranteed life time, low ESR and high ripple current capability

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 25V
Capacitance 220µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 1600mA rms
Rated Ripple Current @120Hz 0mA rms
Impedance/ESR 0,027Ω
Maximum Category Temperature 125°C
Minimale Category Temperature -55°C
Guaranteed Lifetime 4000h
Pin Type THT
Pitch 3,5mm
Diameter 8mm
Height 9mm
Series PZF
Voltage Type DC
Rated Voltage 25Vdc
