25TGV820M12.5x16
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
125°C SMD Long-Life E-Cap TGV-series for high ripple currents
Product Code:
258405
Weight: 2.8 g
Manufacturer: RUBYCON
Weight: 2.8 g
Manufacturer: RUBYCON

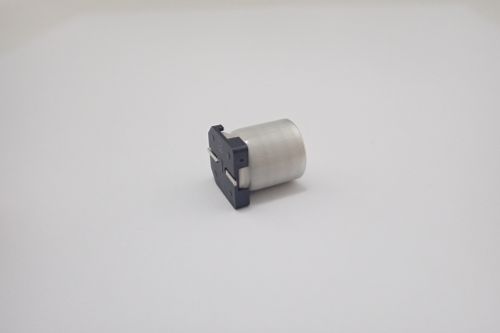

![main product photo](https://www.codico.com/media/catalog/product/cache/c59ee43e27a3fd6035149ee08efef60b/1/2/12_5X16_SMD_1.jpg)
Detailed information
125°C SMD Aluminum Electrolytic Capacitor 25TGV820M12.5x16 with long life time and high ripple current capability
Your technical contact person
![Yasunobu Ikuno Yasunobu Ikuno is application engineer and product manager](https://content.codico.com/fileadmin/_processed_/5/7/csm_YIK_Yasunobu_Ikuno__c91c36ba9d.png)
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
Rated Voltage | 25V |
---|---|
Capacitance | 820µF |
Capacitance Tolerance | +/-20 % |
Rated Ripple Current @100kHz | 1000mA rms |
Rated Ripple Current @120Hz | 0mA rms |
Impedance/ESR | 0,074Ω |
Maximum Category Temperature | 125°C |
Minimale Category Temperature | -40°C |
Guaranteed Lifetime | 5000h |
Pin Type | SMD |
Diameter | 12,5mm |
Height | 16mm |
Series | TGV |
Voltage Type | DC |
Rated Voltage | 25Vdc |
