25TRV1000M12.5x13.5

Free Sample

Product Availability
Deliverable in short time
More information about product availability can be found here: Product Availability
105°C SMD Long-Life E-Cap TRV-series for high ripple currents
Product Code: 258494
Weight: 2.5 g
Manufacturer: RUBYCON

Detailed information

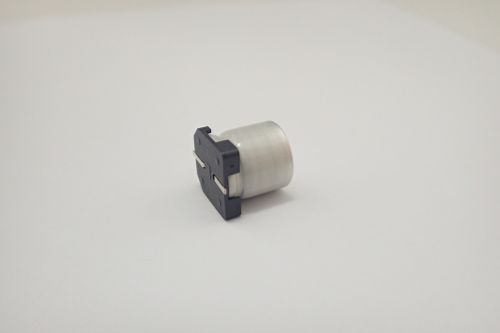

105°C SMD Aluminum Electrolytic Capacitor 25TRV1000M12.5x13.5 with high ripple current capability and extra long life time

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 25V
Capacitance 1000µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 950mA rms
Rated Ripple Current @120Hz 0mA rms
Impedance/ESR 0,092Ω
Maximum Category Temperature 105°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 10000h
Pin Type SMD
Diameter 12,5mm
Height 13,5mm
Series TRV
