315VXH390MEFCSN22x50

Free Sample

Product Availability
Deliverable in short time
More information about product availability can be found here: Product Availability
Miniaturized 105°C Snap-in E-Cap VXH-series with 5.000h
Product Code: 225514
Weight: 30 g
Manufacturer: RUBYCON

Detailed information

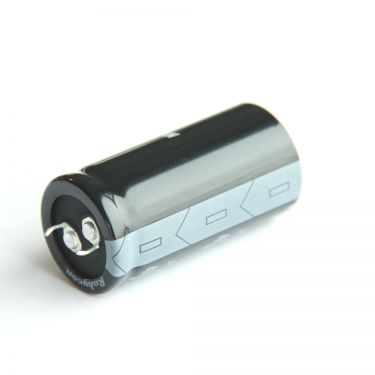

Miniaturized 105°C Snap-in Aluminum Electrolytic Capacitor 315VXH390MEFCSN22x50 with 5.000h guaranteed life time

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 315V
Capacitance 390µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 0mA rms
Rated Ripple Current @120Hz 1870mA rms
Maximum Category Temperature 105°C
Minimale Category Temperature -25°C
Guaranteed Lifetime 5000h
Pin Type SNAP-IN
Pitch 10mm
Diameter 22mm
Height 50mm
Series VXH
