Miniaturized 105°C Snap-in E-Cap VXH-series with 5.000h
Product Code: 217251
Weight: 50 g
Manufacturer: RUBYCON

Detailed information

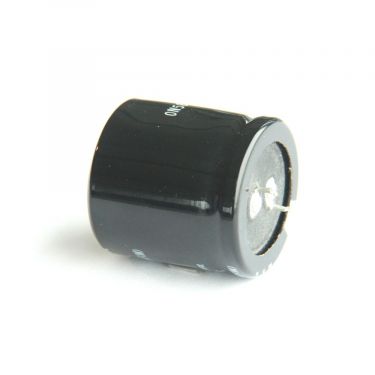

Miniaturized 105°C Snap-in Aluminum Electrolytic Capacitor 315VXH680MEFCSN35x35 with 5.000h guaranteed life time

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 315V
Capacitance 680µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 0mA rms
Rated Ripple Current @120Hz 2010mA rms
Maximum Category Temperature 105°C
Minimale Category Temperature -25°C
Guaranteed Lifetime 5000h
Pin Type SNAP-IN
Pitch 10mm
Diameter 35mm
Height 35mm
Series VXH
Voltage Type DC
Rated Voltage 315Vdc
