35TGV560M12.5x16
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
125°C SMD Long-Life E-Cap TGV-series for high ripple currents
Product Code:
258410
Weight: 2.8 g
Manufacturer: RUBYCON
Weight: 2.8 g
Manufacturer: RUBYCON
Detailed information

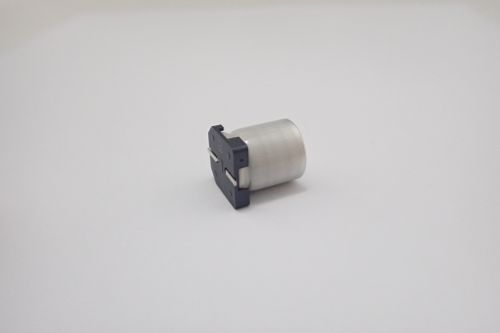

125°C SMD Aluminum Electrolytic Capacitor 35TGV560M12.5x16 with long life time and high ripple current capability
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
Rated Voltage | 35V |
---|---|
Capacitance | 560µF |
Capacitance Tolerance | +/-20 % |
Rated Ripple Current @100kHz | 1000mA rms |
Rated Ripple Current @120Hz | 0mA rms |
Impedance/ESR | 0,074Ω |
Maximum Category Temperature | 125°C |
Minimale Category Temperature | -40°C |
Guaranteed Lifetime | 5000h |
Pin Type | SMD |
Diameter | 12,5mm |
Height | 16mm |
Series | TGV |
Voltage Type | DC |
Rated Voltage | 35Vdc |
