35TRV680M12.5x16

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C SMD Long-Life E-Cap TRV-series for high ripple currents
Product Code: 258507
Weight: 2.8 g
Manufacturer: RUBYCON

Detailed information

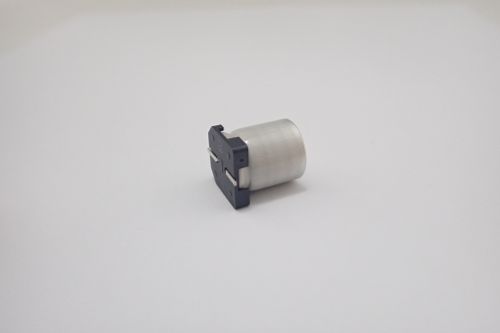

105°C SMD Aluminum Electrolytic Capacitor 35TRV680M12.5x16 with high ripple current capability and extra long life time

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 35V
Capacitance 680µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 1200mA rms
Rated Ripple Current @120Hz 0mA rms
Impedance/ESR 0,074Ω
Maximum Category Temperature 105°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 10000h
Pin Type SMD
Diameter 12,5mm
Height 16mm
Series TRV
