400BXW100MEFR12.5x50

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C THT Long-Life E-Cap BXW-series for high ripple currents
Product Code: 243953
Weight: 7.1 g
Manufacturer: RUBYCON

Detailed information

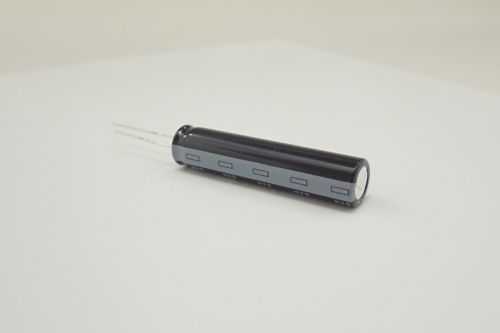

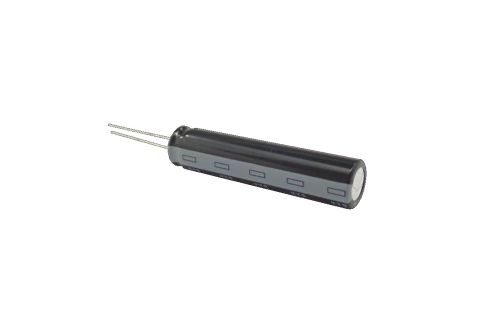

Miniaturized 105°C THT DC-Link Aluminum Electrolytic Capacitor 400BXW100MEFR12.5x50 with long life time and high ripple current capability

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 400V
Capacitance 100µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 1710mA rms
Rated Ripple Current @120Hz 760mA rms
Maximum Category Temperature 105°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 12000h
Pin Type THT
Pitch 5mm
Diameter 12,5mm
Height 50mm
Series BXW
Voltage Type DC
Rated Voltage 400Vdc
