400BXW39MEFR10x35

Free Sample

Product Availability
Deliverable in short time
More information about product availability can be found here: Product Availability
105°C THT Long-Life E-Cap BXW-series for high ripple currents
Product Code: 255819
Weight: 4.4 g
Manufacturer: RUBYCON

Detailed information

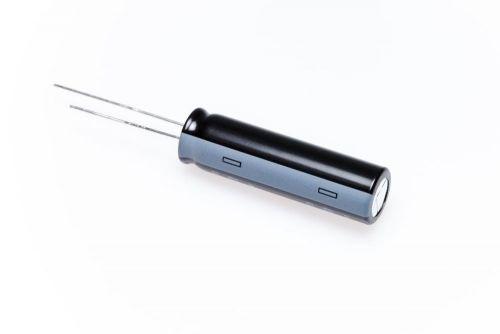

Miniaturized 105°C THT DC-Link Aluminum Electrolytic Capacitor 400BXW39MEFR10x35 with long life time and high ripple current capability

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 400V
Capacitance 39µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 975mA rms
Rated Ripple Current @120Hz 390mA rms
Maximum Category Temperature 105°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 12000h
Pin Type THT
Pitch 5mm
Diameter 10mm
Height 35mm
Series BXW
