400HXG120MEFCSN22x30

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability

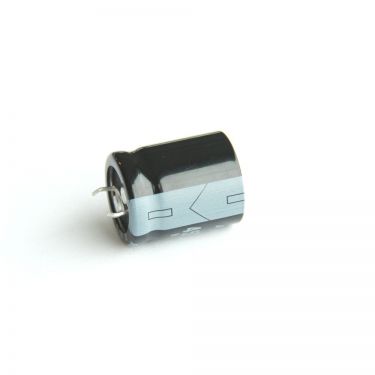

105°C Snap-in E-Cap HXG-series for high ripple currents
Product Code: 233975
Weight: 17 g
Manufacturer: RUBYCON

Detailed information

105°C Snap-in Aluminum Electrolytic Capacitor 400HXG120MEFCSN22x30 with 3.000h guaranteed life time and high ripple current capability

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 400V
Capacitance 120µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 0mA rms
Rated Ripple Current @120Hz 1340mA rms
Maximum Category Temperature 105°C
Minimale Category Temperature -25°C
Guaranteed Lifetime 3000h
Pin Type SNAP-IN
Pitch 10mm
Diameter 22mm
Height 30mm
Series HXG
Voltage Type DC
Rated Voltage 400Vdc
