105°C Snap-in E-Cap KXF-series with low profile case size
Product Code:
250912
Weight: 9 g
Manufacturer: RUBYCON
Weight: 9 g
Manufacturer: RUBYCON
Detailed information

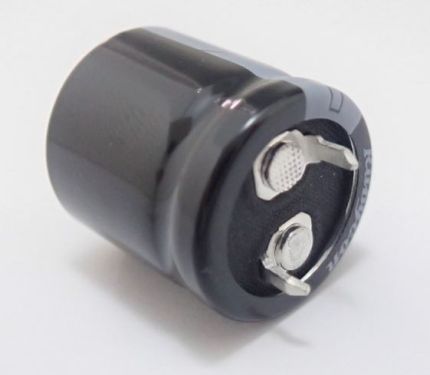

105°C Snap-in Aluminum Electrolytic Capacitor 400KXF56MEFCSN20x20 with 3.000h guaranteed life time and 20mm height
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
Rated Voltage | 400V |
---|---|
Capacitance | 56µF |
Capacitance Tolerance | +/-20 % |
Rated Ripple Current @100kHz | 0mA rms |
Rated Ripple Current @120Hz | 400mA rms |
Maximum Category Temperature | 105°C |
Minimale Category Temperature | -25°C |
Guaranteed Lifetime | 3000h |
Pin Type | SNAP-IN |
Pitch | 10mm |
Diameter | 20mm |
Height | 20mm |
Series | KXF |
Voltage Type | DC |
Rated Voltage | 400Vdc |
