400MXK1000MEFCSN35x50

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Ultra miniaturized 105°C Snap-in E-Cap MXK-series
Product Code: 253467
Weight: 74 g
Manufacturer: RUBYCON

Detailed information

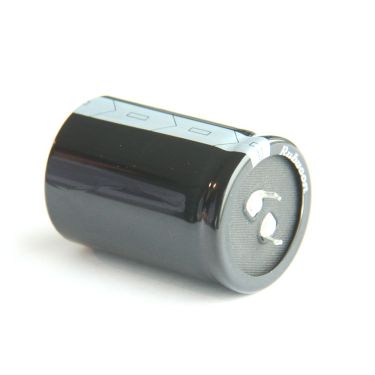

Ultra Miniaturized 105°C Snap-in Aluminum Electrolytic Capacitor 400MXK1000MEFCSN35x50 with 3.000h guaranteed life time

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 400V
Capacitance 1000µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 0mA rms
Rated Ripple Current @120Hz 2700mA rms
Maximum Category Temperature 105°C
Minimale Category Temperature -25°C
Guaranteed Lifetime 3000h
Pin Type SNAP-IN
Pitch 10mm
Diameter 35mm
Height 50mm
Series MXK
Voltage Type DC
Rated Voltage 400Vdc
