400MXK220MEFCSN22x35
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Ultra miniaturized 105°C Snap-in E-Cap MXK-series
Product Code:
248110
Weight: 20 g
Manufacturer: RUBYCON
Weight: 20 g
Manufacturer: RUBYCON
Detailed information

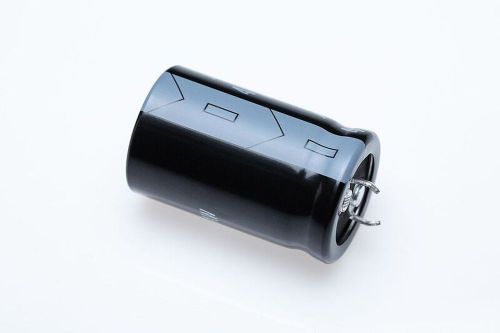

Ultra Miniaturized 105°C Snap-in Aluminum Electrolytic Capacitor 400MXK220MEFCSN22x35 with 3.000h guaranteed life time
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
Rated Voltage | 400V |
---|---|
Capacitance | 220µF |
Capacitance Tolerance | +/-20 % |
Rated Ripple Current @100kHz | 0mA rms |
Rated Ripple Current @120Hz | 1370mA rms |
Maximum Category Temperature | 105°C |
Minimale Category Temperature | -25°C |
Guaranteed Lifetime | 3000h |
Pin Type | SNAP-IN |
Pitch | 10mm |
Diameter | 22mm |
Height | 35mm |
Series | MXK |
Voltage Type | DC |
Rated Voltage | 400Vdc |
