400NXG220MEFCSN22x50

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C Snap-in E-Cap NXG-series with 10.000h
Product Code: 238612
Weight: 30 g
Manufacturer: RUBYCON

Detailed information

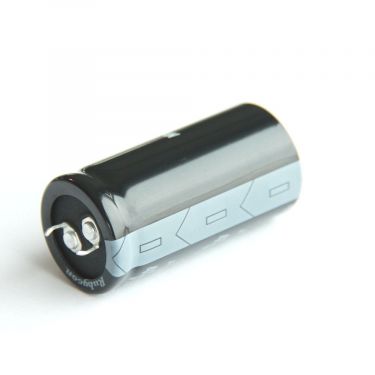

105°C Snap-in Aluminum Electrolytic Capacitor 400NXG220MEFCSN22x50 with 10.000h guaranteed life time

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 400V
Capacitance 220µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 0mA rms
Rated Ripple Current @120Hz 1550mA rms
Maximum Category Temperature 105°C
Minimale Category Temperature -25°C
Guaranteed Lifetime 10000h
Pin Type SNAP-IN
Pitch 10mm
Diameter 22mm
Height 50mm
Series NXG
Voltage Type DC
Rated Voltage 400Vdc
