105°C THT Long-Life E-Cap BXW-series for high ripple currents
Product Code:
251736
Weight: 5 g
Manufacturer: RUBYCON
Weight: 5 g
Manufacturer: RUBYCON
Detailed information

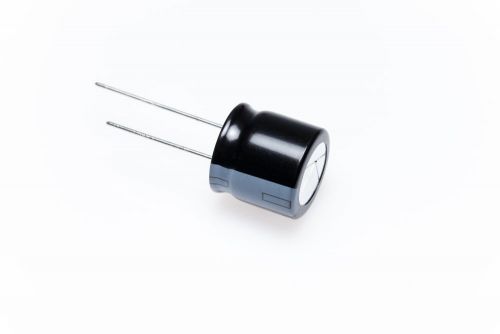

Miniaturized 105°C THT DC-Link Aluminum Electrolytic Capacitor 450BXW15MEFR16x16 with long life time and high ripple current capability
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
Rated Voltage | 450V |
---|---|
Capacitance | 15µF |
Capacitance Tolerance | +/-20 % |
Rated Ripple Current @100kHz | 525mA rms |
Rated Ripple Current @120Hz | 210mA rms |
Maximum Category Temperature | 105°C |
Minimale Category Temperature | -40°C |
Guaranteed Lifetime | 10000h |
Pin Type | THT |
Pitch | 7,5mm |
Diameter | 16mm |
Height | 16mm |
Series | BXW |
Voltage Type | DC |
Rated Voltage | 450Vdc |
