450BXW56MEFR16x25

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C THT Long-Life E-Cap BXW-series for high ripple currents
Product Code: 254849
Weight: 7.8 g
Manufacturer: RUBYCON

Detailed information

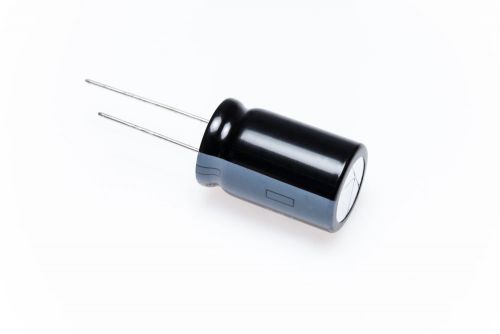

Miniaturized 105°C THT DC-Link Aluminum Electrolytic Capacitor 450BXW56MEFR16x25 with long life time and high ripple current capability

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 450V
Capacitance 56µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 1325mA rms
Rated Ripple Current @120Hz 530mA rms
Maximum Category Temperature 105°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 12000h
Pin Type THT
Pitch 7,5mm
Diameter 16mm
Height 25mm
Series BXW
Voltage Type DC
Rated Voltage 450Vdc
